Breather valve cum Flame Arrester Pipe Away

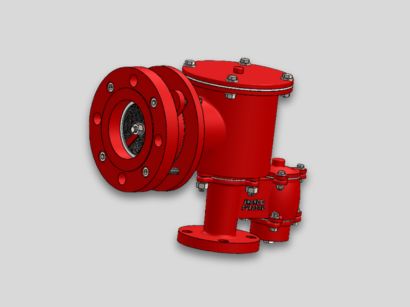

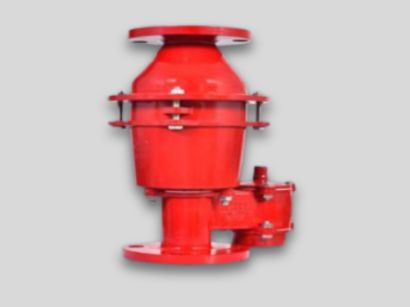

Breather valve cum Flame Arrester (Pipe Away)

Model No: PVPAFAD

ERARDO make breather valve with Flame Arrester / Breather valve cum Flame Arrester are dead weight loaded & Pipe away type. This model used where vapor should divert to safe location or scrubber.

Specification	Details
Manufacturing Standard	API 2000 7th Edition
Testing Standard	API 2000 7th Edition, API 2521
Sizes	1 inch to 24 inch
Body Construction	Carbon Steel, SS 304, SS 316, Aluminium
End Connection	ANSI 150#, API 650 (As per Customer Requirement)
Product Specification
Unit of Price	Piece/Pieces
Price	22000 INR
Unit of Measure	Piece/Pieces
Minimum Order Quantity	100

Erardo Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Breather valve with a flame arrester is a specialized safety device commonly used in industrial applications where the storage tanks or vessels contain flammable liquids or gases It combines the functions of a breather valve pressurevacuum relief with a flame arrester to provide additional protection against the risk of fire or explosion

Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya

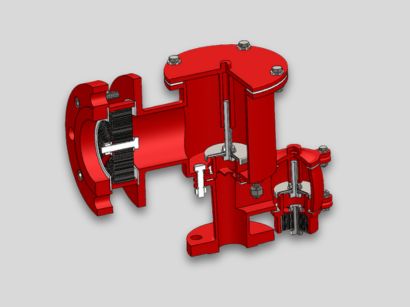

Here is how it works

Breather Valve Functionality Similar to a pressure vacuum relief valve the breather valve component of this device opens to relieve excess pressure or vacuum inside the tank It prevents overpressure or vacuum conditions that could potentially lead to tank rupture or collapse

Flame Arrester The flame arrester is a critical safety feature designed to prevent the propagation of flames into the storage tank or vessel It consists of a mesh or perforated metal plate with narrow passages that disrupt the flame front causing it to extinguish before it can enter the tank and ignite the contents.

FAQs of Breather valve with Flame Arrester

What is the Breather valve with Flame Arrester made of? +

The Breather valve with Flame Arrester is made of materials such as WCBSS304SS 316AL and Carbon Steel

What is the warranty period for the Breather valve with Flame Arrester? +

The Breather valve with Flame Arrester comes with a warranty period of 12 months

What is the recommended application of the Breather valve with Flame Arrester? +

The Breather valve with Flame Arrester is recommended for use in the Oil Gas Chemical industries

What is the size range of the Breather valve with Flame Arrester? +

The Breather valve with Flame Arrester is available in sizes ranging from 1 to 24 inches

What is the working temperature range of the Breather valve with Flame Arrester? +

The Breather valve with Flame Arrester is designed to work in low temperature environments.
