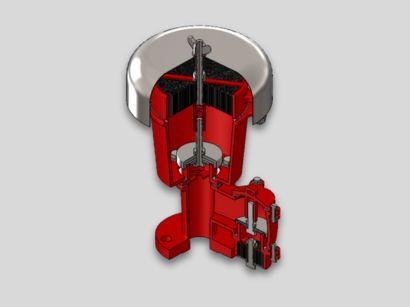

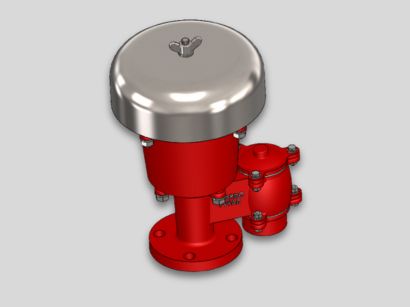

Breather Valve cum Flame Arrester

Model No: PVFAD

ERARDO make breather valve with Flame Arrester / Breather valve cum Flame Arrester are dead weight loaded & End of Line type. This model used where vapor release in to the atmosphere.

Specification	Details
Manufacturing Standard	API 2000 7th Edition
Testing Standard	API 2000 7th Edition, API 2521
Sizes	1 inch to 24 inch
Body Construction	Carbon Steel, SS 304, SS 316, Aluminium
End Connection	ANSI 150#, API 650 (As per Customer Requirement)
Product Specification
Unit of Price	Piece/Pieces
Price	25000 INR
Unit of Measure	Piece/Pieces
Minimum Order Quantity	100

Erardo Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Pressure Vacuum relief valves Breather valve is special designed for tank protection The range includes pressure only vacuum only and combined pressure vacuum valves all available with Flanged outlets or vented to atmosphere.

Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya Pressure vacuum relief valve is used extensively on bulk storage tanks including fixed roof with floating covers to minimize evaporation loss The valves prevent the build up of excessive pressure or vacuum which can unbalance the system or damage the storage vessel

Storage tanks other vessels containing flammable and explosive chemicals and mixture are prevalent in chemical process industries plants Flame Arrester are installed with Breather Valve to prevent potential hazard associated with flammable and explosives materials.

Special Features

Design of Breather Valve with integrated Flame Arrester such that it gives Maximum Flow low pressure Drop Fire Safe Flame Element size will be 15 times than BV Size It will nullify pressure drop which will occur due to Flame Element

Easy cleaning less clogging and less Maintenance Cleaning can be done by removing Wing Nut

Flouropolymer coated Body and hardware are provided for outstanding corrosion and chemical resistance

Low BlowDown

Low Leakage and reduced vapor loss

Dead Weight design such that set PressureVacumm can be changed as per need

Vacuum port area 1 dot 3 times higher than PV size By this we increased in breathing flow by 30 of required flow

Model No BVFAD

Pressure Vacuum side Flame Element Dia 1 dot 5 times of breather Valve Size Hence there is no Flow restriction and Pressure Drop

Both side Flame Element are installed at outer side of Breather Valve Hence Maintenance and cleaning will be easy

There will be no direct contact with Vapors because of this the life of Flame element increase

There will be no blocking as Flame element contact with vapors at the time of Pressure condition

During Fire the Flame element directly contact with Flame Hence Tank will be Safe in Fire or explosion

FAQs of Breather Valve cum Flame Arrester

Breather Valve cum Flame Arrester is designed to protect tanks, pipelines, and other vessels from dangerous overpressure and vacuum conditions caused by changes in temperature and/or volume.

Breather Valve cum Flame Arrester can be used for water, gas, oil, and other liquid and gaseous media in various industries like Oil, Gas, Chemical, Pharmaceutical.

Breather Valve cum Flame Arrester can work in a temperature range of -20 to 100 Celsius (oC).

Breather Valve cum Flame Arrester is available in sizes ranging from 25 to 600.

Breather Valve cum Flame Arrester is a Dead Weight type valve that works manually.

Breather Valve cum Flame Arrester comes in red color.

Breather Valve cum Flame Arrester weighs around 10 Kilograms (kg).
