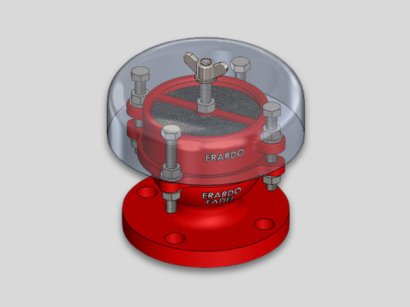

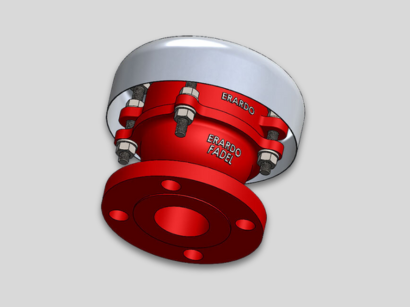

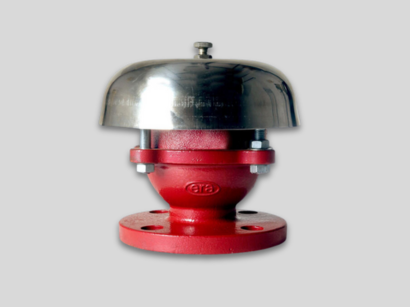

End of Line Deflagration flame arrestor

Main Image

Model No: FADEL

ERARDO make End of Line Deflagration flame arrestor is suitable for quenching subsonic flames and should be located at the end of a pipeline or exit from a vessel or Tank. It should be installed in the horizontal plane and is not for use with pressure relief valves or pressure-vacuum relief valves.

Specification Details
Manufacturing Standard API 2000 7th Edition
Testing Standard ISO 16852, IS 11006, BS 7244, EN 12874, IS 16485
Sizes 0.5 inch to 24 inch
Body Construction A216 Gr. WCB, SS 304 (A351 Gr. CF8), SS 316 (A351 Gr. CF8M), Aluminium LM-6 (As per requirement)
End Connection API Class 150, 300, 600, PN, DIN (As per requirement)
Gas Group IIA, IIB, IIC
Product Specification
Unit of Price Piece/Pieces
Price 5000.00 INR
Unit of Measure Piece/Pieces

A weather hood and screen protect the vent and restricts dust, wind, rain, or insects from entering and degrading the efficacy of the product.

Erardo Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Flame Arrester, Storage tanks other vessels containing flammable and explosive chemicals and mixture are prevalent in chemical process industries plants Flame Arrester is installed on such equipment to prevent potential hazard associated with flammable and explosives materials Flame Arrester can stop the spread of a fire limit the spread of an explosive event protect potentially explosive mixtures from igniting and confine a fire within an enclosed controlled location

A flame arrester works by forcing a flame front through very narrow channels MESG has travels through the device but the passages are so narrow that the flame can no longer be maintained

Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya

Classification as per Installationa

Deflagration type

  • Detonation type

    • Special Features

  • Design of Flame Arrester such that it gives Maximum Flow and low pressure Drop
  • Easy cleaning less clogging and less Maintenance
  • Removable element design allows for easy inspection cleaning and replacement
  • Flouropolymer coated Body and hardware are provided for outstanding corrosion and chemical resistance
  • Provision available for Standard Temperature port in all type of Flame Arrester
  • Flame Arrester are available in A216 Gr WCB SS 304 and SS 316 and Flame CageElement will be in SS 304 SS 316 SS 316Ti and Hastelloy C
  • Flame Arrester designed and Manufactured as per API 2000 7th Edition and Tested as per ISO 16852

    • Erardo-FADEL

  • 1 Body of Flame Arrester is Invest Casting Lost Wax Process
  • 2 Size available 15 NB to 600 NB
  • 3 IIA IIB IIC Gas Group
  • 4 Available in A216 Gr WCB Cf8 CF8M CF3 CF3M and Aluminium LM6
  • 5 Flame Element available in SS 304 SS 316 SS 316Ti Hastelloy C

    • FAQs of End of Line Flame Arrester

    End of Line Flame Arrester is made up of WCB/SS 304/SS 316 material.

    End of Line Flame Arrester can withstand temperature ranges between -20 to 150 Celsius.

    End of Line Flame Arrester weighs 0.5 Kilograms (kg).

    End of Line Flame Arrester is used in Oil, Gas, Pharmaceutical, and Chemical industries.

    End of Line Flame Arrester can withstand temperature ranges between -20 to 150 Celsius.
