Pressure Safety Valve

Pressure Safety Valve

Model No: PSV

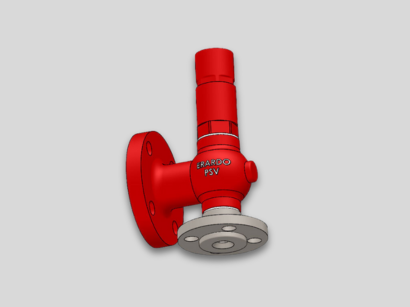

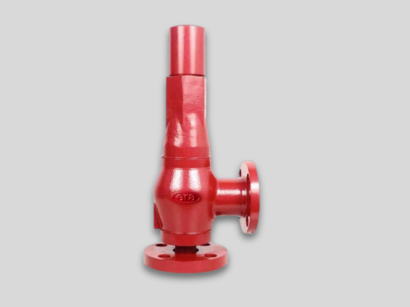

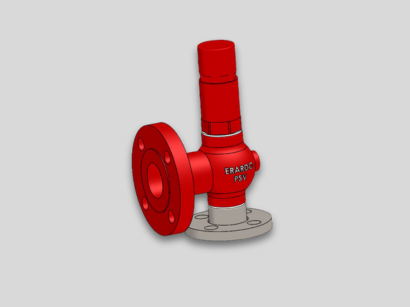

ERARDO make Pressure Safety Valve / Safety Relief Valve Angle Discharge, Spring Loaded, Full Lift, Semi Nozzle, Full Nozzle, Conventional type Flange End Pressure / Safety Relief Valve with Open Bonnet, Open (bolted) Cap & Plain Lever.

Specification	Details
Manufacturing Standard	API 520 / 526 / 527
Sizes	1 inch to 10 inch
Body Construction	A216 Gr. WCB, SS 304, SS 316
End Connection	ANSI 150#, ANSI 300#, ANSI 600#
Product Specification
Unit of Price	Piece/Pieces
Price	5000.00 INR
Unit of Measure	Piece/Pieces

Erardo Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Safety Pressure Relief Valves are manufactured with high accuracy to assure the performance of the valve protect critical expensive equipments from dangerously high pressure

Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya

We are Design Manufactured Tested as per API Standard

Sizing Selection – STD API 520 Part 1

Design Dimension – API 526

Testing STD – API 527

Pressure Temperature Rating – ANSI B16.34

Flange Rating – ANSI B16.5 / BS / DIN

Special Features

All design options and various effects of system conditions, backpressure, etc. have been checked in-house in accordance with API standards.

Maintenance is easier and cost-effective; replacement of parts is simple.

Castings, forgings, and raw materials are made from ASTM and ASME specifications.

A variety of materials are offered, including non-ferrous materials for low pressure and temperature, stellited seating surfaces for high pressure and temperature, and PTFE lined with CFT/GFT trims for chemical and process industries.

Selection of nozzle and disc materials with precise lapping ensures positive shutoff, complies with relevant standards, and prevents loss of flow media.

Performs efficiently under difficult backpressure conditions.

Body of safety valve is investment cast up to 15".

Model No: TSV

Pressure Rating: Up to 2500 Class

MOC: A216 Gr WCB, SS 304, SS 316, Super Alloy Steel, and PTFE Lined

Type: Conventional, Metal-to-Metal, Soft Seated

Application Liquid Water Air

End Connection: Flanged

FAQs of Pressure Safety Valve

What is the temperature range of the Pressure Safety Valve ?+

The temperature range of the Pressure Safety Valve is 20 to 500 Celsius oC

What is the material used for the disc of the Pressure Safety Valve?+

The disc of the Pressure Safety Valve is made of SS 316.

What is the weight of the Pressure Safety Valve?+

The weight of the Thermal Relief Valve is 10 kg

What is the recommended application of the Pressure Safety Valve?+

The Pressure Safety Valve is recommended for use in Oil, Gas, Chemical, and Pharmaceutical industries.

What is the size range of the Pressure Safety Valve?+

The size range of the Pressure Safety Valve is 15 to 300 NB.
