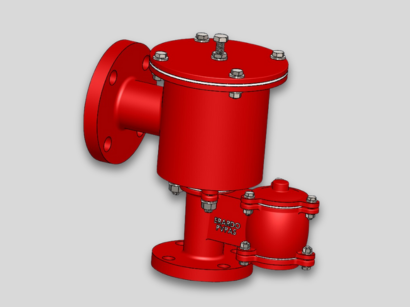

Spring Loaded Breather valve (Pipe Away)

Main Image

Model No: PVPAS

ERARDO make Pipe Away & Spring-Loaded Breather Valve / Pipe Away & Spring-Loaded Pressure Vacuum Relief Valve used where Vapours should divert to scrubber or safe location during release time and Set Pressure much higher which not accommodate by dead weight.

Specification Details
Manufacturing Standard API 2000 7th Edition
Testing Standard API 2000 7th Edition, API 2521
Sizes 1 inch to 24 inch
Body Construction Carbon Steel, SS 304, SS 316, Aluminium
End Connection ANSI 150#
Product Specification
Unit of Price Piece/Pieces
Price 8000.00 INR
Unit of Measure Piece/Pieces
Minimum Order Quantity 100
Media Oil

Erardo Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Pressure Vacuum relief valves Breather valve is special designed for tank protection The range includes combined pressure vacuum valves all available with Flanged outlets or vented to atmosphere

Pressure vacuum relief valve is used extensively on bulk storage tanks including fixed roof with floating covers to minimize evaporation loss The valves prevent the build up of excessive pressure or vacuum which can unbalance the system or damage the storage vessel.

Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya.

Special Features

  • Low BlowDown The diaphragm design such that blow down is minimized to 1015 for Pressure Relief and 1520 for Vacuum relief
  • Low Leakage and reduced vapor loss
  • High Flow Capacity
  • Easy maintenance
  • PVRV designed Manufactured and Tested as per API 2000 Standard 7th Edition

    • Model No PVPAD Pipe Away Dead Weight Loaded

  • Hazardous vapors can be transfer to safe are or incinerator by pipe away type design
  • Seal best to the normal values which minimize product loss
  • Maximum flow with low pressure drop
  • Vacuum side flange can be provided for Nitrogen Blanketing
  • All Body of PVs are made by Invest Casting Lost Wax Process
  • Available MOC A216 Gr WCB CF8 CF8M and Aluminium LM6
  • Size 15 NB to 600 NB

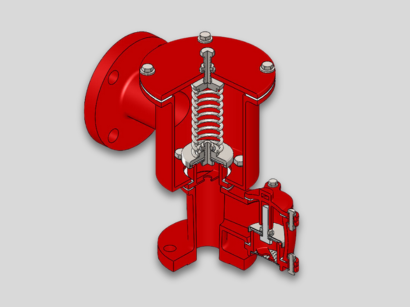

    • Model No PVPAS Pipe Away Spring Loaded

  • Hazardous vapors can be transfer to safe are or incinerator by pipe away type design
  • Seal best to the normal values which minimize product loss
  • Maximum flow with low pressure drop
  • Vacuum side flange can be provided for Nitrogen Blanketing
  • Higher Set Pressure Vacuum from 1000 mmWC to KgCm2 will be achieve by Spring
  • All Body of PVs are made by Invest Casting Lost Wax Process
  • Available MOC A216 Gr WCB CF8 CF8M and Aluminium LM6
  • Size 15 NB to 600 NB

    • FAQs of Breather Valve (Pipe Away)

    Breather Valve (Pipe Away) can be used in Oil, Gas, Chemical, Pharmaceutical, and Agro Chemical industries.

    Breather Valve (Pipe Away) can operate within a temperature range of -20 to 100 Celsius (oC).

    Breather Valve (Pipe Away) weighs 10 Kilograms (kg).

    Breather Valve (Pipe Away) comes in red color.

    Breather Valve (Pipe Away) comes in size range of 25 to 600 NB.
